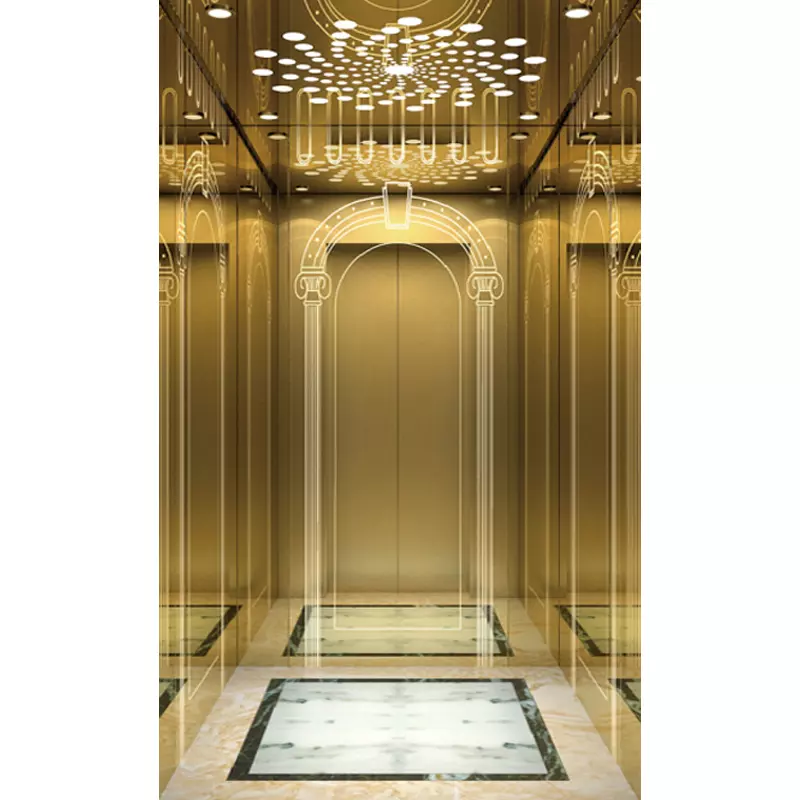

Product Details
Ceiling: Titanium gold mirror-finish stainless steel frame, acrylic light-transmitting plate, LED lights
The car wall: titanium gold mirror-finish stainless steel, etched
Sedan chair door: Titanium gold hairline stainless steel
Handrail: None
Floor: PVC(marble self-care)
Standard Configuration Table for Passenger Elevators in Small Machine Rooms KS series
| Serial number | Component name | Brand configuration | Origin of technology | |
| 1 | Traction machine | Gearless permanent magnet synchronous motor | For models under 1250kg, Xinda/Tongrun are standard equipment | Ningbo |
| Standard configuration for 1250-1600kg: Xinda/Tongrun | Ningbo | |||
| Rotary encoder | EIDEWHAIN1387, Heidenhain, Germany | Germany | ||
| 2 | Control system | Integrated frequency converter | Merneck WICE3000 | Suzhou |
| Main contactor | FUJISC-W2 | Japan | ||
| Contactor | FUJISC-N3 | Japan | ||
| Relay | Omron | Japan | ||
| 3 | Door machine system | Portal crane | Shenling | Ningbo |
| Door machine frequency converter | Panasonic | Chinese/Japanese technology | ||
| Door light curtain | WEKO | Ningbo | ||
| 4 | Cab components | Integrated control box | Mirror-finish stainless steel panel, button from Ningbo Electronic Equipment Factory | KONEASIAN |
| Outbound call box |
Bottomless box type 304# stainless steel panel (dot matrix display)
|
KONEASIAN | ||
| Cab assembly(Height 2600mm) | 1.2mm304# hair-textured stainless steel, matching sound insulation cotton, cast iron cab top wheels | KONEASIAN | ||
| Sedan chair door (height 2180mm) | 1.2mm hairline stainless steel | KONEASIAN | ||
| 5 | Layer door component | Layer door device | Shenling TKP161-05 Medium score | Ningbo |
| Floor door (height 2180mm | The first layer is made of brushed stainless steel, and the steel plates above the second layer are powder-coated | KONEASIAN | ||
| 6 | Safety components | Speed limiter | Yongtongli xz05 | Guangdong |
| For speeds above 2.5, switch to Hebei Dongfang xS1 | ||||
| Safety clamp | Huahui QJ102 | Guangdong | ||
| For speeds above 2.5, switch to Hebei Dongfang AQ19 | Hebei | |||
| Buffer | Huahui HYF80 hydraulic buffer | Guangdong | ||
| For speeds above 2.5, switch to the Hebei Dongfang YH2/420 hydraulic buffer | Hebei | |||
| 7 | Shaft components | Steel wire rope | Quan You | Tianjin |
| Tianjin Goldman Sachs (pre-stretched)V=2.5m/S-3.0 m/S | Tianjin | |||
| Flat cable | Haotong TVVBPG28X0.75mm | Guangdong | ||
| Guide rail | SAVERA | Guangdong | ||
| Counterweight assembly | Standard configuration | KONEASIAN | ||
