Product Details
Freihgt Elevator parameters
| 有机房货梯 MR Freihgt Elevator |
无机房货梯 MRL Freihgt Elevator |
|||
| 小值Minimum value | 大值Large value | 小值Minimum value | 大值Large value | |
| 速度(m/s) Speed |
0.5 | 1 | 0.5 | 1 |
| 载重(kg) Load capacity |
2000 | 5000 | 2000 | 3000 |
| 底坑深度(mm) Depth of the pit bottom |
1500 | 1700 | 1500 | 1700 |
| 顶层高度(mm) Top floor height |
4400 | 4600 | 4400 | 4600 |
| 开门尺寸(mm) Door opening dimensions |
1600*2100 | 2000*2100 | 1600*2100 | 1800*2100 |
| 井道尺寸(mm) Carriage shaft dimensions |
2950*2700 | 3800*4000 | 3200*2700 | 3500*3100 |
| 轿厢尺寸(mm) Carriage dimensions |
1900*2100*2350 | 2500*2300*2350 | 1900*2100*2350 | 2200*2500*2350 |

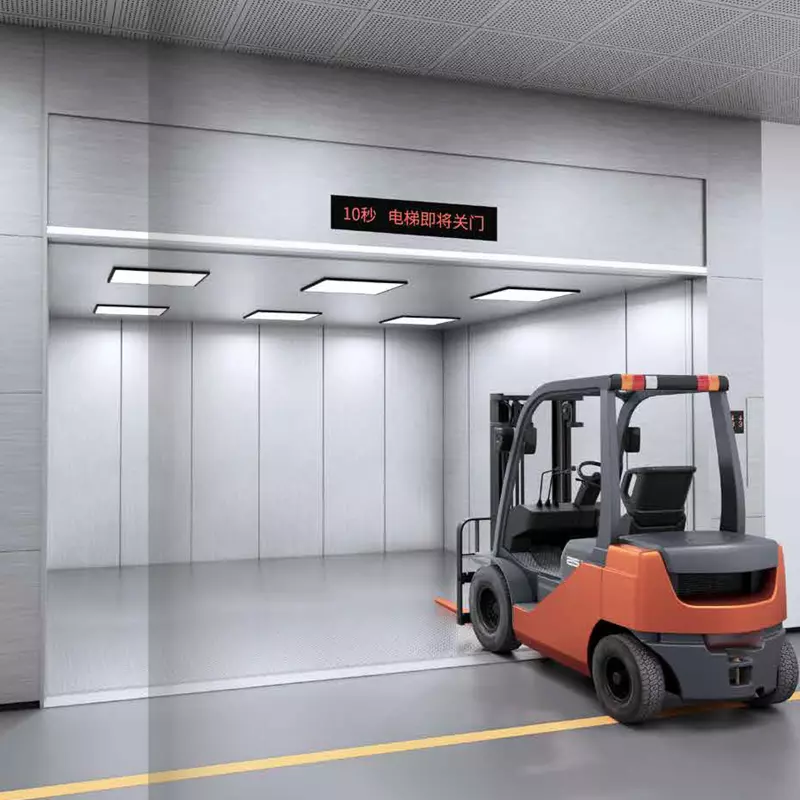

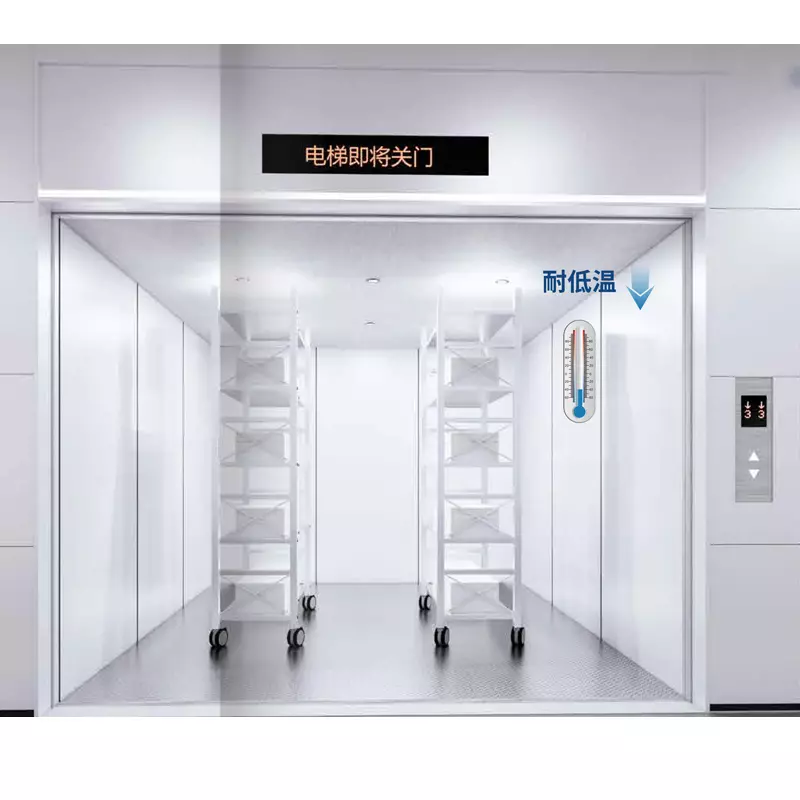

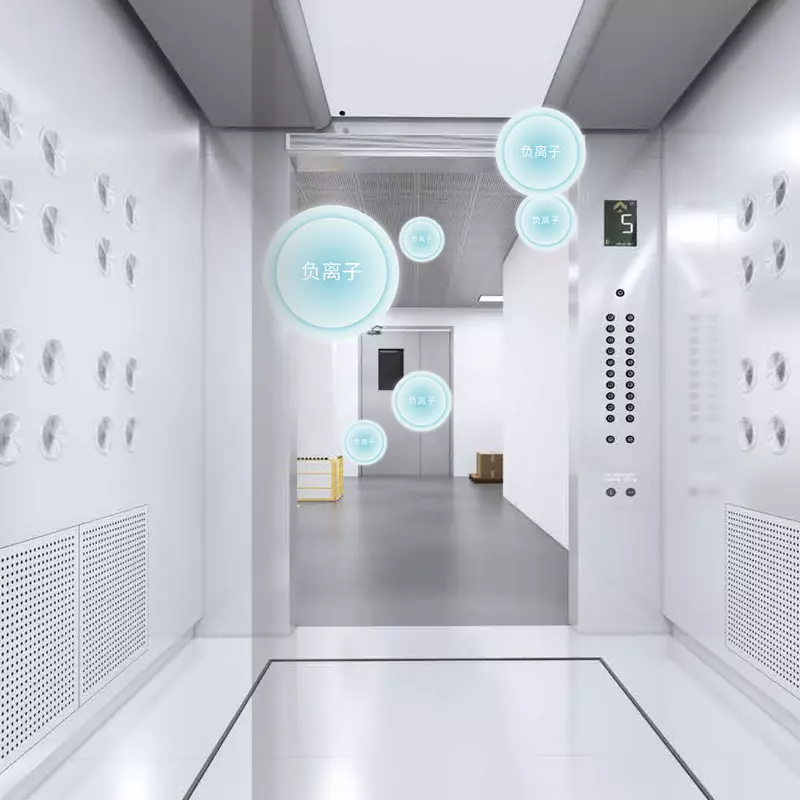

Application Scenarios
